A stepper motor driver acts as the interface between the controller and the motor.
Therefore, correct stepper motor driver wiring and current setting directly affect torque output, motor temperature, and long-term reliability.
In this guide, we explain how to wire a stepper motor driver correctly and how to set the current for optimal performance.

If you are still selecting motors, you can browse our
Stepper Motor Products
or review our technical article
Stepper Motor Wiring Diagram
before continuing.

1. Basic Stepper Motor Driver Wiring

Most modern stepper motor drivers use a similar wiring structure.
As a result, once you understand the fundamentals, you can wire different driver brands with confidence.

Typical Driver Wiring Terminals

  • PUL+ / PUL−: Step (pulse) signal
  • DIR+ / DIR−: Direction signal
  • ENA+ / ENA−: Enable signal (optional)
  • A+ / A−: Motor phase A
  • B+ / B−: Motor phase B
  • V+ / V−: Power supply input

Driver Wiring Flow

First, connect the controller outputs to the signal terminals on the driver.
Next, connect the motor phases to the A and B terminals.
Finally, connect the power supply to the driver input terminals.
This clear wiring sequence helps prevent common installation mistakes.

2. Wiring Stepper Motor to Driver

Motor wiring depends on whether you are using a 4-wire, 6-wire, or 8-wire stepper motor.
Therefore, always confirm the motor wiring diagram before making connections.

  • 4-wire motor: Connect directly to A+ A− B+ B− (bipolar).
  • 6-wire motor: Ignore center taps for bipolar operation.
  • 8-wire motor: Choose series or parallel wiring based on speed and torque requirements.

For detailed wiring diagrams, refer to our guide:
Stepper Motor Wiring Diagram.

3. Understanding Stepper Motor Driver Current Setting

Current setting is one of the most critical parameters in stepper motor control.
If the current is too low, the motor will lose torque.
However, if the current is too high, the motor and driver may overheat.
Therefore, correct current adjustment is essential.

How to Select the Correct Current

Always start with the motor rated current listed in the datasheet.
Then, set the driver output current to approximately 70–100% of the motor rated phase current.
As a result, the motor delivers sufficient torque while maintaining safe operating temperatures.

Driver DIP Switch Current Setting

Many stepper drivers use DIP switches to set output current.
Therefore, match the DIP switch configuration to the required RMS current value.
If the driver displays peak current, convert it properly before setting.

4. Relationship Between Current, Torque, and Heat

Increasing driver current increases motor torque.
However, torque gain does not scale linearly with current.
As current rises, motor heating increases rapidly.
Therefore, engineers must balance torque requirements with thermal limits.

To better understand this relationship, read our detailed explanation:
Stepper Motor Torque Explained.

5. Common Stepper Driver Wiring Mistakes

  • Connecting motor wires randomly without identifying coil pairs
  • Setting current higher than motor rated value
  • Using insufficient power supply voltage
  • Skipping shielding in high-noise environments

Fortunately, careful wiring and correct parameter settings can eliminate most of these issues.

6. Driver Selection Tips for Industrial Applications

When selecting a stepper motor driver, consider the following:

  • Output current range
  • Supply voltage range
  • Microstepping capability
  • Closed-loop compatibility (if required)

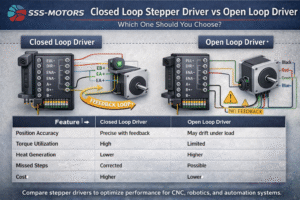

For high-performance systems, closed-loop stepper drivers provide better stability and fault detection.
You can explore related products in our
Stepper Motor Driver Category.

Conclusion

Correct stepper motor driver wiring and proper current setting significantly improve system performance, reliability, and service life.
Therefore, always verify wiring diagrams, match current settings to motor specifications, and test thermal behavior during commissioning.
By following this guide, engineers can avoid common failures and achieve stable motion control results.

For further reading, continue with:
Stepper Motor Wiring Diagram
Stepper Motor Torque Explained.
