High Precision Gearbox vs Planetary Gearbox vs Precision Reducer

When researching motion control solutions, you may encounter many terms such as high precision gearbox, planetary gearbox, and precision reducer. At first glance, they sound similar, but each term emphasizes a different technical aspect. This guide will explain their similarities and differences, and how they are used with stepper motors and servo motors.

What is a Gearbox(Speed Reducer)?

A gearbox is a mechanical device that changes the speed and torque of a motor. By using different gear ratios, it reduces the motor’s speed while increasing torque output. Gearboxes are commonly used in industrial automation, robotics, CNC machinery, and packaging equipment.

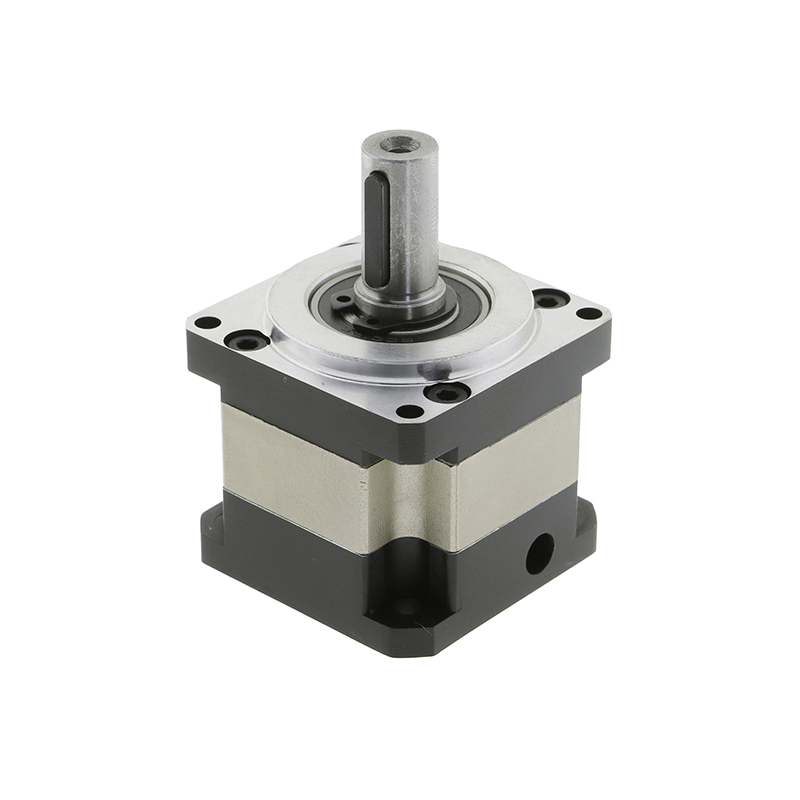

What is a Planetary Gearbox?

A planetary gearbox (also called a planetary reducer) is a special type of gearbox. It consists of a central sun gear, multiple planet gears, and a ring gear. This design provides high torque density, compact size, and excellent efficiency. Planetary gearboxes are widely used with both servo motors and stepper motors when high accuracy and durability are required.

Core Components:

• Sun Gear

• Planet Gears

• Ring Gear

• Planet Carrier

What is a Precision Reducer?

A precision reducer refers to any gearbox designed with extremely low backlash, high positioning accuracy, and stable transmission. “Precision” highlights the ability to maintain accurate motion without play or deviation. Planetary gearboxes are often classified as precision reducers, especially in robotics and automation systems.

What is a High Precision Gearbox?

The term high precision gearbox is usually a marketing or engineering description for gearboxes with very low backlash (e.g., 5–15 arc-min or less), high efficiency, and long service life. In practice, a high precision gearbox often means a planetary gearbox or harmonic reducer that meets strict accuracy standards.

Are They Stepper Motors or Servo Motors?

It is important to clarify: gearboxes are not motors. They are mechanical accessories mounted on motors. You will often see terms like servo motor with planetary gearbox or stepper motor with precision reducer. – A stepper motor gearbox is used when cost-effective, open-loop control is enough. – A servo motor gearbox is chosen for applications requiring closed-loop control, higher speed, and higher dynamic accuracy. The gearbox itself is the same, but the motor type determines the system performance.

Summary

• Gearbox: General term for speed and torque changing device.
• Planetary Gearbox: Specific gearbox structure with sun, planet, and ring gears.
• Precision Reducer: Emphasizes low backlash and accuracy, often includes planetary types.
• High Precision Gearbox: Marketing/engineering term for premium quality precision reducers.

In short, these names overlap because they describe either the design (planetary), the function (reducer), or the performance level (high precision). The motor (stepper or servo) is a separate component, and the right combination depends on your application requirements.

Technical Parameters Explained

Key Performance Indicators

1. Reduction Ratio

   • Ratio of input speed to output speed

   • Common range: 3:1 to 100:1

2. Backlash

   • Amount of clearance in gear meshing

   • Directly affects positioning accuracy

3. Rated Torque

   • Maximum torque allowed for continuous operation

4. Torsional Stiffness

   • Ability to resist torsional deformation

Selection Guide

Choosing Based on Application Requirements

• High Dynamic Response Applications: Servo motor + Precision planetary gearbox

• High Precision Positioning Applications: Stepper motor + High precision reducer

• High Torque Heavy Load Applications: Servo motor + High precision gearbox

Industry-Specific Selection

• Robotics Industry: RV reducer, harmonic drive

• Machine Tool Industry: Precision planetary gearbox

• Aerospace: High precision gearbox

Professional Terminology: Chinese-English Comparison

• 减速机: Speed Reducer/Gearbox

• 行星减速机: Planetary Reducer

• 精密减速机: Precision Reducer

• 齿轮箱: Gearbox

• 背隙: Backlash

• 减速比: Reduction Ratio

• 额定扭矩: Rated Torque

• 扭转刚度: Torsional Stiffness

• 伺服电机: Servo Motor

• 步进电机: Stepper Motor

Conclusion

Although high precision reducers, precision planetary gearboxes, and high-precision gearboxes have different names, they all belong to the field of precision transmission, each with specific structural characteristics and application scenarios. Understanding the differences and connections between these devices is crucial for proper selection and optimizing system performance. When choosing, it’s essential to comprehensively consider precision requirements, torque needs, space constraints, and budget constraints to select the most suitable reduction solution for specific applications.

With the development of Industry 4.0 and smart manufacturing, high-precision reduction technology will continue to evolve toward higher precision, greater rigidity, and more compact structures, providing superior power transmission solutions for modern industrial equipment.
