Backlash vs Accuracy vs Repeatability: What Really Matters in Planetary Gearbox Systems
Backlash vs Accuracy vs Repeatability: What Really Matters in Planetary Gearbox Systems
In precision motion control systems, especially those using a planetary gearbox with a stepper motor, engineers often encounter three closely related but frequently misunderstood terms: backlash, accuracy, and repeatability. Understanding the difference between them is essential when selecting the right planetary gear ratio and gearbox configuration.
1. What Is Backlash in a Planetary Gearbox?

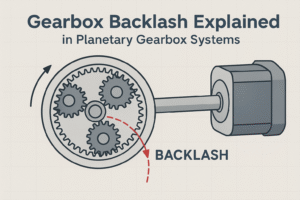

Backlash refers to the lost motion caused by clearance between mating gear teeth. In a planetary gearbox, backlash appears when the input direction changes, resulting in a small angular delay before torque is transmitted to the output shaft.
Typical planetary gearboxes have backlash values ranging from:
- ≤ 15 arcmin for single-stage planetary gearboxes
- ≤ 20 arcmin for multi-stage planetary gearboxes
Backlash is a mechanical characteristic — it does not change with control algorithms or drivers.
2. Accuracy: Positioning Error in Motion Systems
Accuracy describes how close the actual output position is to the commanded position. In stepper motor systems, accuracy is influenced by:
- Motor step angle (e.g. 0.9° vs 1.8°)
- Microstepping resolution of the stepper driver
- Gear ratio of the planetary gearbox
- Accumulated gearbox backlash
Even with a high gear reduction, backlash directly reduces positioning accuracy when direction changes occur.
3. Repeatability: The Often More Important Metric
Repeatability measures how consistently a system returns to the same position when commanded repeatedly from the same direction.
This is where planetary gearboxes excel. Even with measurable backlash, a well-designed planetary gearbox offers excellent repeatability because the internal gear engagement remains consistent.
For applications such as:
- Pick-and-place systems
- Indexing tables
- Automated assembly
high repeatability is often more critical than absolute accuracy.
4. Backlash vs Accuracy vs Repeatability — Engineering Comparison
| Parameter | Backlash | Accuracy | Repeatability |
|---|---|---|---|
| Definition | Mechanical clearance between gears | Deviation from target position | Ability to return to same position |
| Affected by Gear Ratio | No (absolute arcmin) | Yes | Minimal |
| Affected by Driver | No | Yes | Yes |
| Critical for | Direction reversal | Absolute positioning | Process consistency |
5. How Planetary Gear Ratio Changes the System Behavior
Increasing the planetary gear ratio does not reduce backlash in arcminutes, but it significantly improves output resolution.
Example:
- Motor step angle: 0.9°
- Gear ratio: 20:1
- Output resolution: 0.045° per full step
This makes planetary gearboxes ideal for applications requiring both torque multiplication and improved positioning control.
For applications requiring compact torque amplification with predictable repeatability, planetary gearboxes integrated with NEMA 17 stepper motors are commonly used in industrial automation.
6. When Should You Care More About Repeatability Than Accuracy?
If your application always approaches the target position from the same direction, backlash can be mechanically compensated. In such cases, repeatability becomes the dominant performance factor.
This is why planetary gearboxes are widely used in automation systems that rely on predictable motion rather than absolute metrology.
7. Engineering Takeaway
Backlash, accuracy, and repeatability describe different aspects of motion performance. A well-matched stepper motor + planetary gearbox system balances all three according to application requirements.
Understanding these differences helps engineers select the correct planetary gear ratio without over-specifying cost or complexity.
