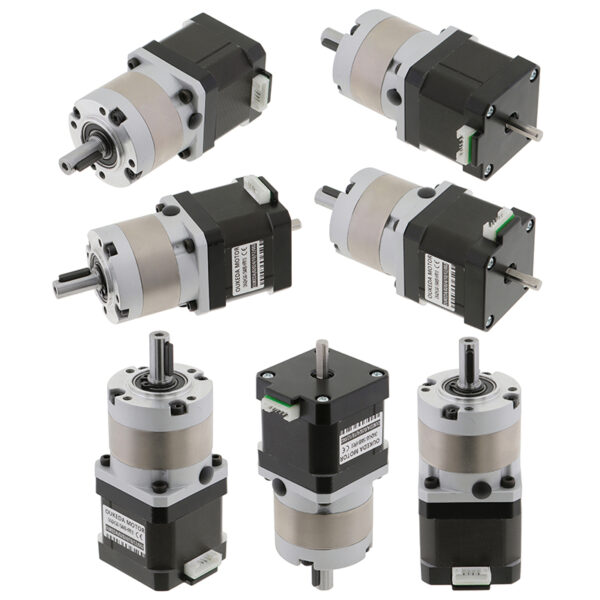

0.9° NEMA 17 Precision Planetary Gear Stepper Motor with High Accuracy Gearbox

0.9° NEMA 17 Planetary Gear Stepper Motor Overview

This precision-engineered 0.9° NEMA 17 stepper motor is combined with a high-quality planetary gearbox to achieve exceptional positioning resolution, torque amplification, and reduced mechanical backlash.
Compared with standard stepper motors, the integrated epicyclic planetary gear structure ensures smoother transmission, higher load capacity, and long-term mechanical stability.

Planetary gears distribute load across multiple gear teeth, making this motor ideal for automation systems where accuracy, rigidity, and repeatability are critical.
Learn more about how planetary gearboxes affect precision and backlash in our engineering guide:

Planetary Gearbox Engineering Guide
.

Key Advantages of Planetary Gears Integration

• 0.9° step angle for ultra-fine positioning resolution
• Compact planetary gearboxes with high torque density
• Reduced backlash compared to spur or worm gear solutions
• Multiple planetary gear ratio options available
• High torsional stiffness for dynamic load applications

Technical Specifications

Parameter	Specification
Motor Frame Size	NEMA 17 (42mm)
Step Angle	0.9°
Motor Type	2-Phase Stepper Motor
Rated Current	According to winding option
Holding Torque (Motor)	Based on configuration
Insulation Class	Class B
Operating Temperature	-20℃ to +50℃

Planetary Gearbox Specifications

Gearbox Parameter	Value
Gear Type	Epicyclic Planetary Gear
Gear Material	Metal Planetary Gears
Backlash	Low backlash design (application dependent)
Efficiency	High efficiency planetary transmission
Service Life	Extended due to load sharing design

Available Planetary Gear Ratios

Planetary Gear Ratio	Typical Application
5:1	High-speed positioning systems
10:1	Precision automation modules
20:1	High torque compact drives
50:1	Indexing tables and rotary axes

Encoder Options

Encoder Type	Description
Incremental Encoder	Standard AB phase encoder for position feedback
Resolution	Optional pulses per revolution
Function	Position monitoring, missed step detection

Wiring Diagram

Wire Color	Function
Black	Phase A+
Green	Phase A−
Red	Phase B+
Blue	Phase B−

Typical Applications

• Precision rotary stages
• Robotics joint drives
• Medical and laboratory equipment
• Automation indexing systems
• Compact servo replacement solutions

Thanks to its optimized planetary gears and fine step resolution, this NEMA 17 planetary gear stepper motor provides an excellent balance between accuracy, torque, and mechanical reliability.

Download Datasheet

Download the full specification sheet for detailed parameters, wiring guide, and performance curves.

📄 Download PDF Datasheet
