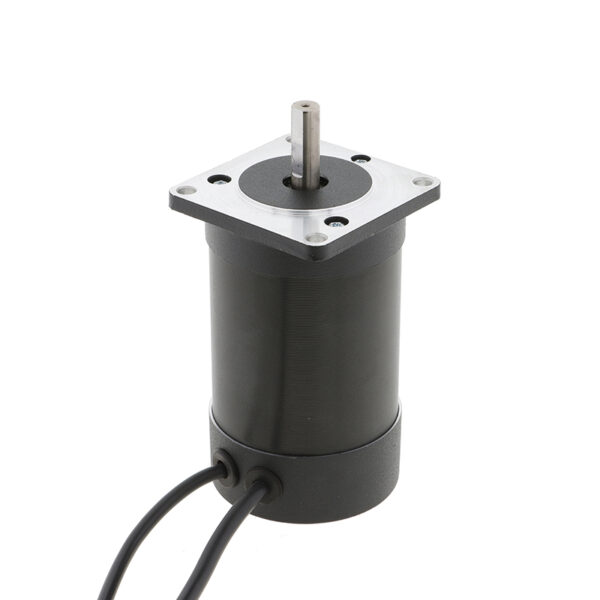

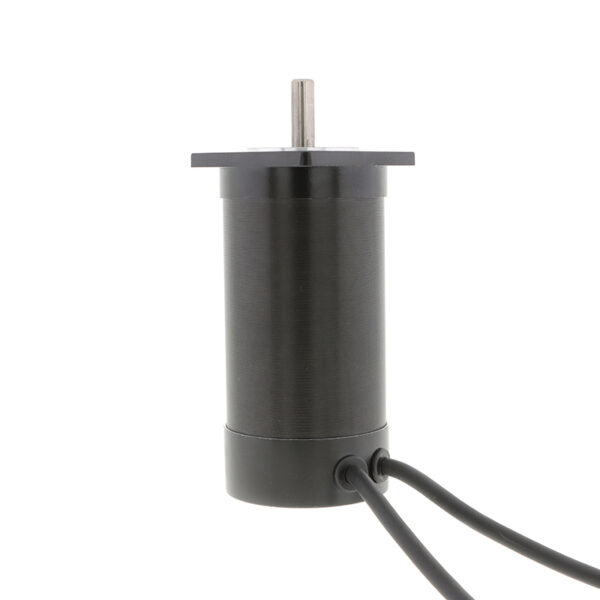

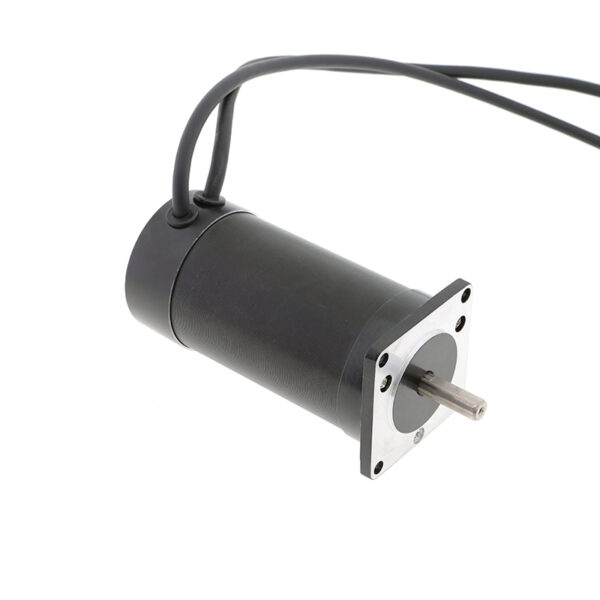

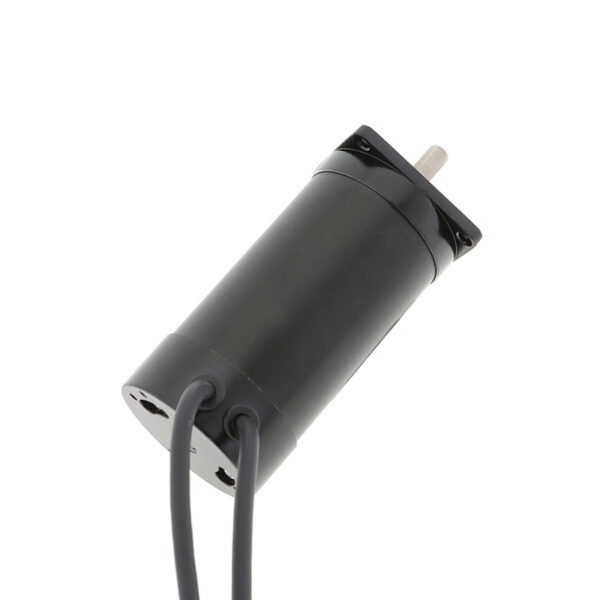

NEMA23 DC Brushless Motor 57BL95 24V 100W 3000RPM

The NEMA23 DC brushless motor model 57BL95 is a high-efficiency
brushless electric motor designed for demanding industrial motion systems.
This compact brushless motor BLDC delivers stable torque, low noise operation,
and long service life compared with traditional brushed motors.

With a rated speed of 3000RPM and peak speed up to 4200RPM, this
24V brushless motor provides excellent dynamic performance for CNC equipment,
robotics, automation systems, and intelligent machinery. When paired with a
brushless DC motor driver, the motor offers smooth speed regulation
and accurate positioning performance.

NEMA23 Brushless DC Motor Key Features

• Standard NEMA23 DC brushless motor frame size (57mm)
• Rated power 100W with high efficiency performance
• Rated torque 0.32Nm for stable mechanical output
• Rated speed 3000RPM and maximum speed up to 4200RPM
• Compatible with professional brushless DC motor driver
• Low noise, long lifetime, and maintenance-free structure

Technical Specifications

Parameter	Specification
Number of Phases	3
Number of Poles	4
Rated Voltage	24 VDC
Rated Speed	3000 ±10% RPM
No Load Speed	4200 ±10% RPM
Rated Current (Max.)	6.3 A
Rated Power	100 W
Rated Torque	0.32 N.m
Insulation Resistance	100MΩ Min (500V DC)
Ambient Temperature	-30°C ~ +50°C
Ambient Humidity	15% ~ 95%
Motor Weight	Approx. 0.95 Kg
Insulation Class	B

Electrical Connection Table

Signal	Wire Color	Description
+5V	Red	Hall sensor power supply
HALL U	Yellow	Hall sensor signal U
HALL V	Green	Hall sensor signal V
HALL W	Blue	Hall sensor signal W
GND	Black	Hall sensor ground
PHASE U	Yellow	Motor phase U
PHASE V	Green	Motor phase V
PHASE W	Blue	Motor phase W

Applications

The motors brushless DC series is widely used in modern motion control systems:

• CNC machines
• Industrial automation equipment
• Robotics and AGV systems
• Medical devices
• Smart manufacturing equipment

FAQ

How does a brushless motor work?

A brushless DC motor uses electronic commutation instead of brushes.
Hall sensors detect the rotor position, and the controller switches current
through the stator windings to generate a rotating magnetic field that drives
the rotor.

Brushless DC motor vs brushed DC motor

Compared with brushed motors, BLDC motors provide higher efficiency, longer life,
lower maintenance, and reduced electrical noise due to the absence of brushes.

Brushless DC motor and controller

A BLDC motor requires a dedicated brushless DC motor driver or controller
to manage commutation, speed control, and torque regulation.

Brushless motor speed controller

A brushless motor speed controller regulates the voltage and commutation sequence
of the motor phases to precisely control the rotational speed and torque output.

Download Datasheet

Download the full specification sheet for detailed parameters, wiring guide, and performance curves.
