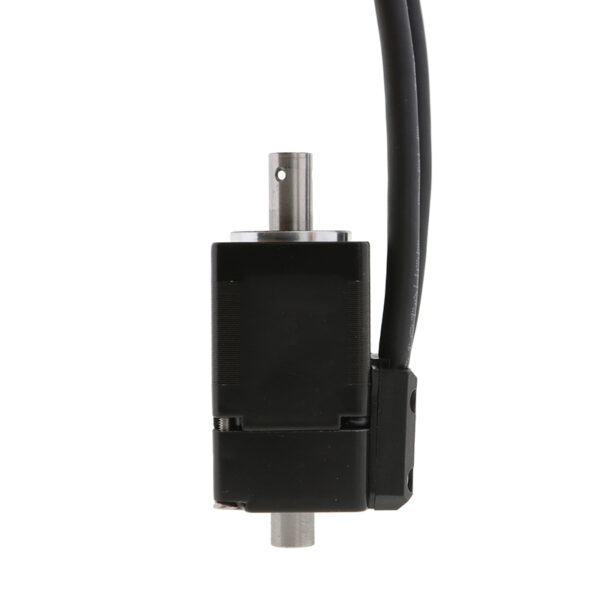

NEMA 14 Closed Loop Stepper Motor with Hollow Shaft

Engineered for high precision and reliability, our NEMA 14 closed loop stepper motor combines the simplicity of a stepper with the accuracy of a servo. The hollow shaft design allows for easy passage of cables or tubing, making it perfect for compact automation systems, 3D printers, CNC routers, and robotic arms.

Key Features & Benefits

• Closed-Loop Precision: Integrated 2500 PPR photoelectric encoder ensures accurate positioning and eliminates step loss.

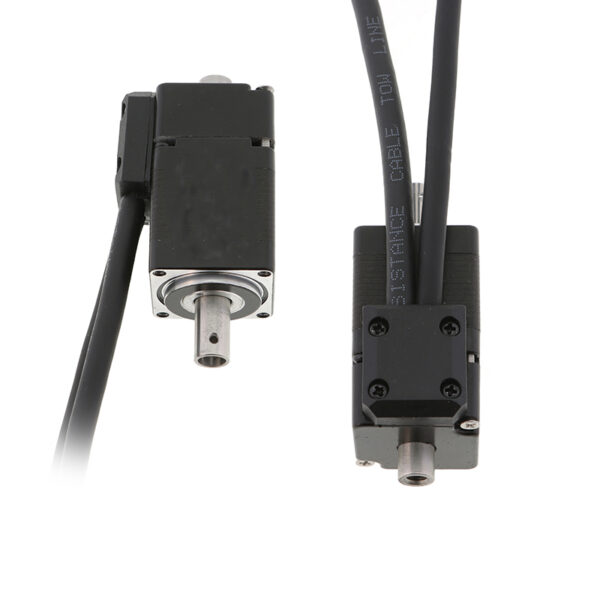

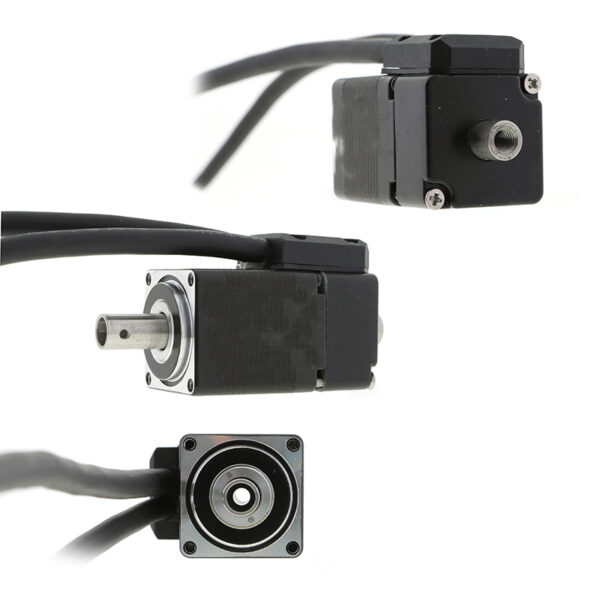

• Hollow Shaft Design (28/35mm): Facilitates neat cable management and reduces overall system footprint.
• Customizable Drive Solution: Tailor the performance to your needs; pre-configured to work with our SSS2D4020A driver.
• Robust Construction: Class B insulation and high insulation resistance (100MΩ min) ensure durability in demanding environments.

Technical Specifications

Motor Electrical Parameters

• Step Angle: 1.8° ±5%
• Number of Phases: 2
• Phase Voltage: 2.1 VDC
• Phase Current: 1.0 Amp
• Phase Resistance: 2.1 Ω ±10% (at 20°C)
• Phase Inductance: 1.5 mH ±20%
• Holding Torque (Static Moment): 0.06 N.m
• Use Voltage: VDC 12-24V
• Motor Weight: Approx. 0.11 kg

Encoder Specifications (Optional)

• Type: Photoelectric Encoder
• Number of Pulses: 2500 Lines
• Wire Definition: +5V, GND, A+, A-, B+, B-, Z+, Z-
• Cable Colors: Red, White, Black, Blue, Yellow, Green, Brown, Ash (Grey)

Environmental & Safety Ratings

• Insulation Class: Class B
• Insulation Resistance: 100 MΩ min. (500V DC)
• Ambient Temperature: -20°C to +50°C
• Ambient Humidity: 15% to 95%

Recommended Drive & Customization

For optimal performance, we recommend pairing this motor with my partner’s SSS2D4020A driver. We also offer extensive customization options for both the encoder cabling and the drive parameters to perfectly match your application’s requirements.

Applications

This versatile NEMA 14 closed loop stepper motor is ideally suited for:

• High-precision 3D Printers and CNC Machines
• Laboratory Automation and Sample Handling
• Robotic Joints and Actuators
• Optical Positioning Systems
• Any application demanding reliability and positional accuracy.
