NEMA 6 Bipolar 1.8° Stepper Motor 0.58N·cm (0.85oz.in) 0.3A 14×14×30mm 4 Wires – Hollow Shaft Stepper Motor
Compact and lightweight NEMA6 hollow shaft stepper motor, delivering 0.58N·cm holding torque with 0.3A phase current. Ideal for micro-precision motion systems, robotics, and compact automation devices.

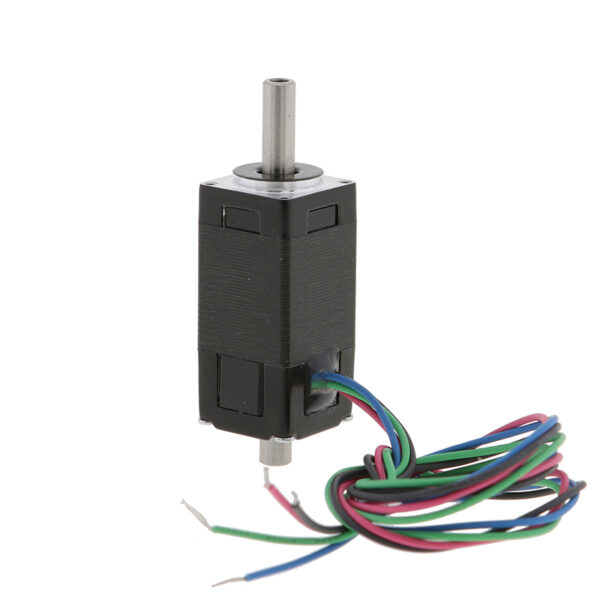

NEMA 6 Hollow Shaft Stepper Motor – 14×14mm Miniature Bipolar Type
The NEMA6 stepper motor is a compact, high-precision
hollow shaft stepper motor designed for limited-space applications.

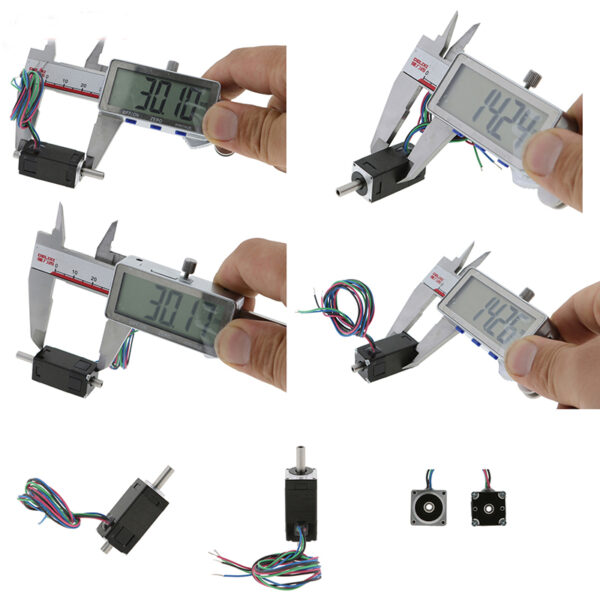

Measuring just 14×14×30mm, it provides reliable torque performance with smooth motion,
ideal for optical instruments, robotics, 3D printers, and micro-positioning devices.
Its bipolar 4-wire design ensures stable control and compatibility
with a wide range of drivers.
Electrical Specifications
| Item | Specification |
|---|---|
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° ±5% |
| Holding Torque | 0.58 N·cm (0.85 oz.in) |
| Rated Current / Phase | 0.3 A |
| Phase Resistance | 22.0 Ω ±10% (at 20°C) |
| Phase Inductance | 4.2 mH ±20% |
| Static Moment | 0.058 kg·cm min |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ min (500V DC) |
| Ambient Temperature | -30°C ~ +50°C |
| Ambient Humidity | 15% ~ 95% RH |
| Motor Weight | Approx. 0.03 kg |
| Recommended Drive Voltage | VDC: 5–24V |
| Shaft Diameter | Φ4 mm |
Key Features
- Miniature NEMA6 hollow shaft stepper motor for space-limited designs
- Precise 1.8° step angle for smooth motion control

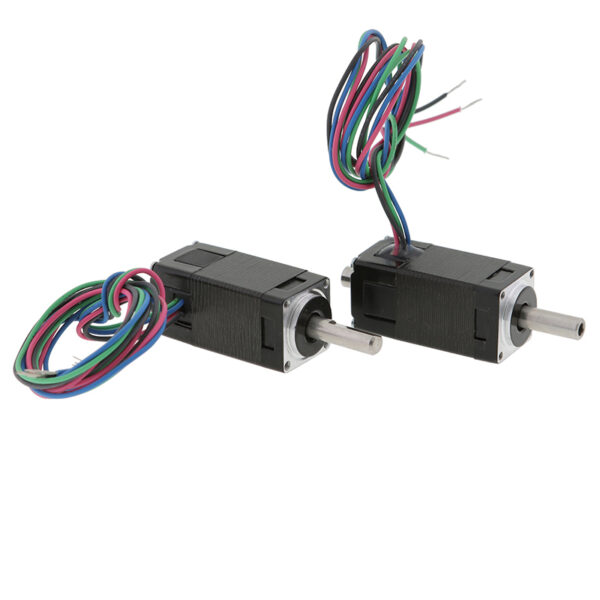

- Lightweight 30mm body with 4mm output shaft
- Durable construction with Class B insulation
- Compatible with hollow shaft encoders and DC motor replacements
Applications
The 14mm NEMA6 stepper motor is ideal for:
- Micro-positioning systems and lab automation
- Robotic joints and mini actuators
- 3D printers and precision optical equipment
- Compact drives replacing hollow shaft DC motors
- Medical instruments and lightweight devices
