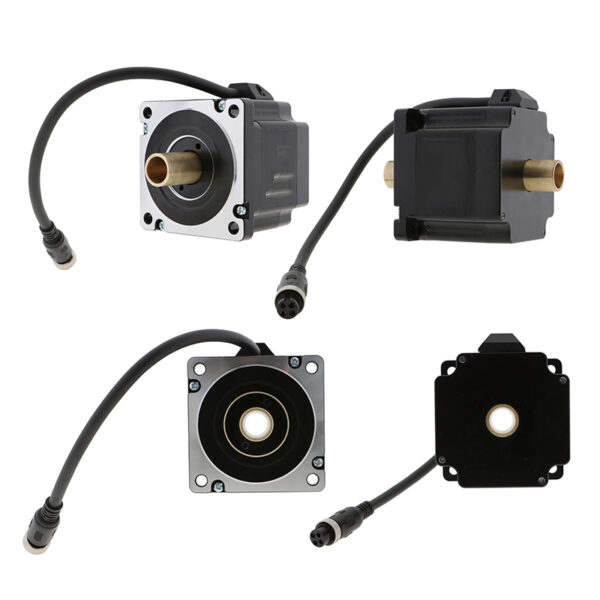

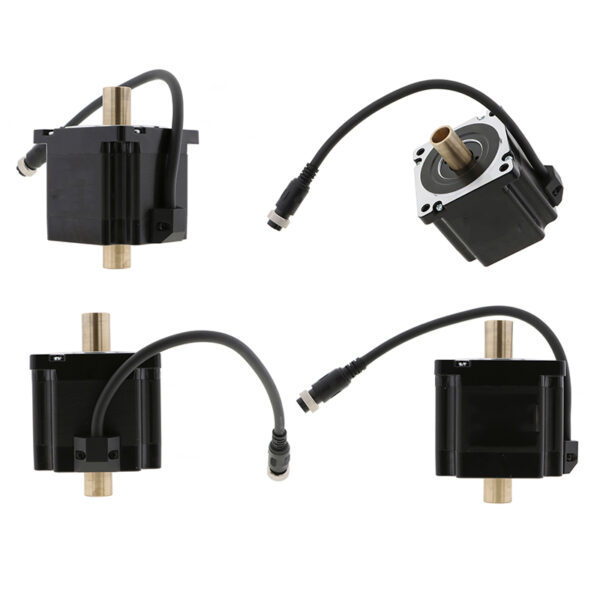

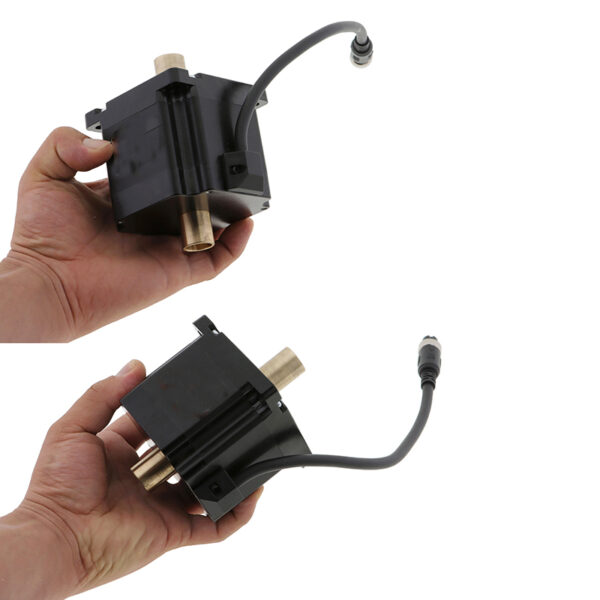

Dual Shaft Nema 34 Bipolar 1.8° 4.5Nm (637.25oz.in) 6.0A 86x86x76mm 4 Wires – Hollow Shaft Stepper Motor
High-torque dual shaft NEMA34 bipolar stepper motor with 4.5Nm holding torque, 6.0A rated current, and 16mm hollow shaft design. Ideal for CNC, automation, and encoder applications.
Dual Shaft NEMA34 Bipolar Stepper Motor – 4.5Nm Holding Torque
This Dual Shaft NEMA34 stepper motor is designed for demanding
motion control applications. Featuring a hollow shaft design and
compact 86x86x76mm body, it provides high torque and precision, making it an
excellent choice for CNC machinery, robotics, packaging equipment, and

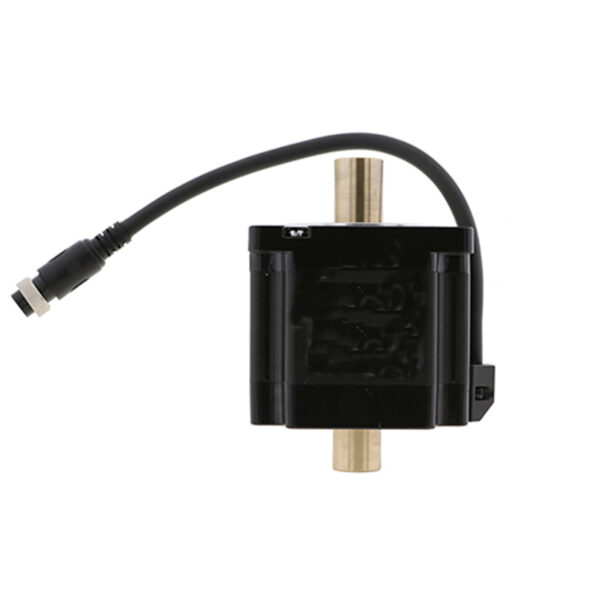

other automation systems. The dual output shaft design allows
convenient integration with hollow shaft encoders or direct mechanical couplings.
Electrical Specifications
| Item | Specification |
|---|---|
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 4.5 Nm (637.25 oz.in) |
| Rated Current / Phase | 6.0 A |
| Phase Resistance | 0.35 Ω |
| Inductance | 3.2 mH ±20% (1KHz) |
| Insulation Class | Class B (130°C / 266°F) |

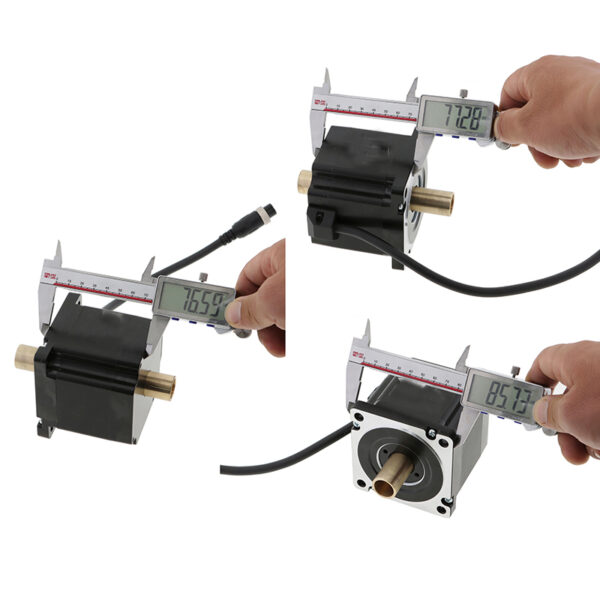

| Frame Size | 86 x 86 x 76 mm |
| Shaft Type | Dual shaft, hollow shaft option |
| Wires | 4 Wires |
Connection
| A+ | A- | B+ | B- |
| Red | Black | Yellow | Blue |
Key Features
-
- High holding torque of 4.5 Nm for stable motion control
- Dual shaft NEMA34 stepper motor with hollow shaft design
- Durable construction with Class B insulation
- Compatible with hollow shaft encoders for feedback systems
- Standard 86mm stepper motor frame size for easy installation
Applications
The NEMA34 hollow shaft stepper motor is widely applied in:
- CNC routers, milling, and laser cutting machines
- Robotics and automated positioning systems
- Industrial packaging and labeling machinery
- Motion control systems requiring hollow shaft DC motor replacements
- Encoder-integrated automation projects
