NEMA 17 Stepper Motor with Planetary Gearbox 3:1 Reduction
This NEMA 17 stepper motor with 3:1 planetary gearbox is designed for applications requiring light speed reduction while maintaining fast response and smooth motion.

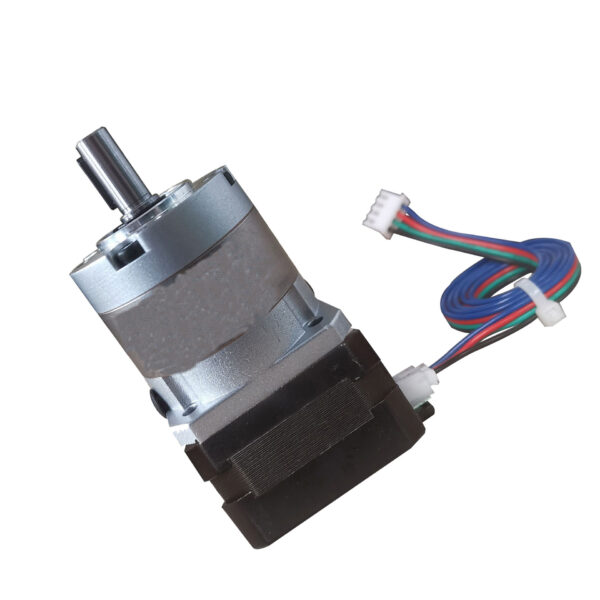

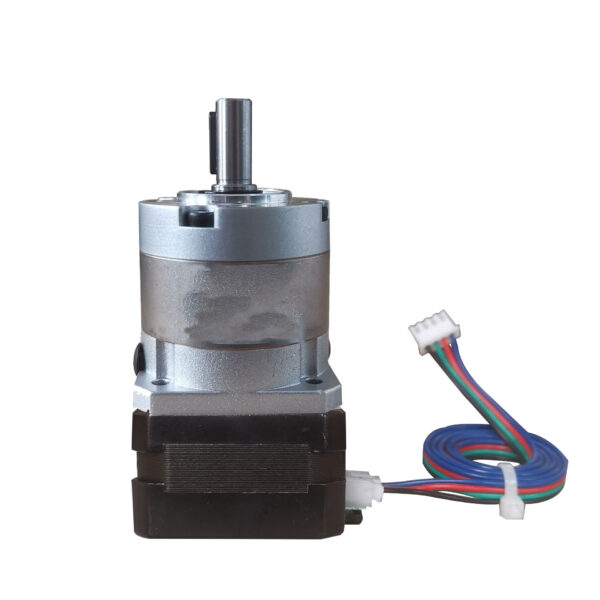

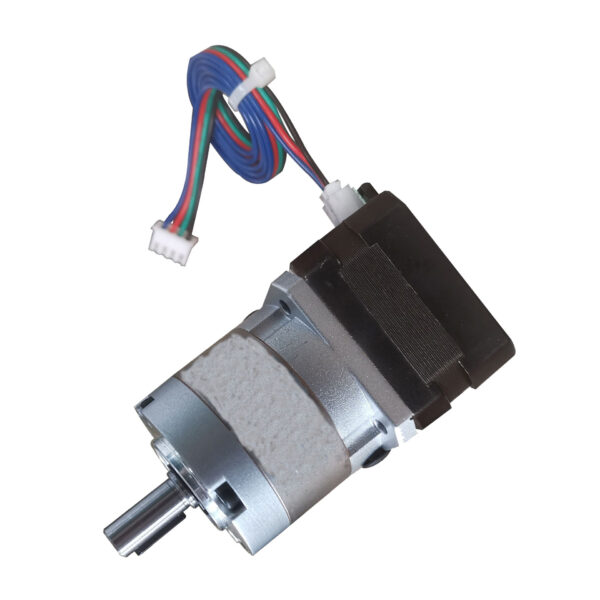

NEMA 17 Stepper Motor with Planetary Gearbox 3:1
This model integrates a high-precision 0.9° NEMA 17 stepper motor with a
planetary gearbox 3:1 reduction ratio. It offers minimal speed reduction
while improving torque output and motion stability.
The short-shaft motor platform is based on our ultra-thin design.
View the 0.9° short-shaft stepper motor here.
Why Choose a 3:1 Planetary Gearbox
A 3:1 planetary gear ratio is ideal when only slight speed reduction is needed,
while improving torque transmission and reducing vibration in dynamic motion systems.
Stepper Motor Specifications
| Item | Specification |
|---|---|
| Frame Size | NEMA 17 (42 × 42 mm) |
| Step Angle | 0.9° ±5% |
| Phases | 2 |
| Rated Voltage | 3.36 VDC |
| Rated Current | 1.4 A |
| Motor Holding Torque | 0.18 N·m |
Planetary Gearbox Parameters
| Parameter | Value |
|---|---|
| Gearbox Type | Planetary Gearbox |
| Reduction Ratio | 3 : 1 |
| Efficiency | 96% |
| Backlash | < 15 arcmin |
Wiring Diagram
| Wire Color | Function |
|---|---|
| Black | A+ |
| Green | A− |
| Red | B+ |
| Blue | B− |
Backlash Engineering Note
Backlash is an important factor to consider when selecting a planetary gearbox for your application.
It refers to the play between the gear teeth that occurs when direction is reversed.
The amount of backlash can impact the precision and repeatability of your system.
In general, a higher gear ratio, such as 50:1, tends to introduce more backlash,
which may be acceptable for low-precision applications. However, for high-precision tasks like CNC machines or robotics,
a lower gear ratio such as 3:1 or 5:1 with minimal backlash is preferred to ensure accurate motion control.
It’s crucial to assess the backlash tolerance in your system and choose the appropriate gearbox ratio.
Lower backlash is generally preferred for applications requiring high accuracy and repeatability.
For more details on how backlash affects your system, please consult our Backlash vs Accuracy vs Repeatability blog post.
For more information on how to reduce backlash and optimize your planetary gearbox performance, read our in-depth technical article: How to Minimize Backlash in Planetary Gears.
Typical Applications
- Fast positioning modules
- Light-load automation systems
- High-speed indexing devices
Planetary Gearbox Selection Guide
Selecting the correct planetary gear ratio depends on load torque, speed requirements, and positioning accuracy.
For applications requiring higher torque than a 3:1 planetary gearbox,a 5:1 planetary gearbox may be a better option.
Other Planetary Gearbox Options
This model is part of our
NEMA 17 planetary gearbox stepper motor series.
Be the first to review “NEMA 17 Stepper Motor with Planetary Gearbox 3:1 Reduction”
Related products
-

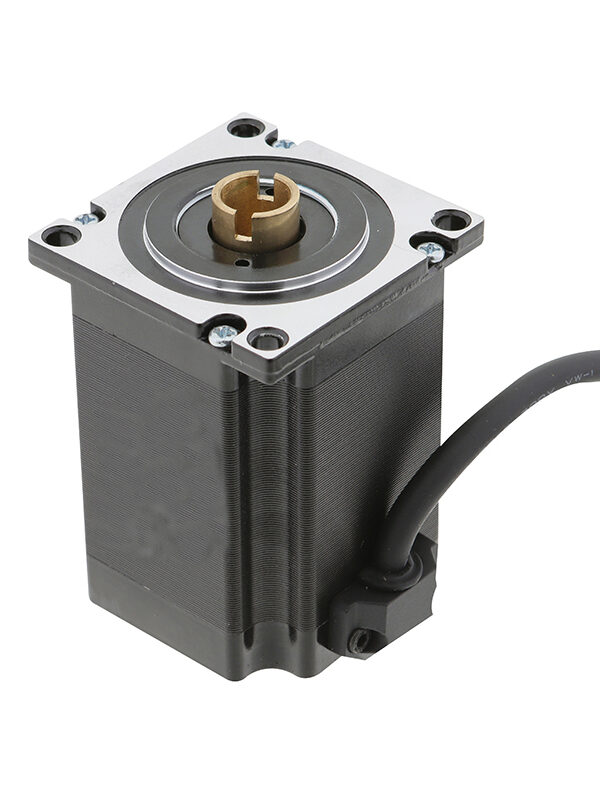

57 Series Two-Phase Hybrid Stepper Motor with Hollow Shaft, 1.89 N.m Torque, 76mm Body Length
-

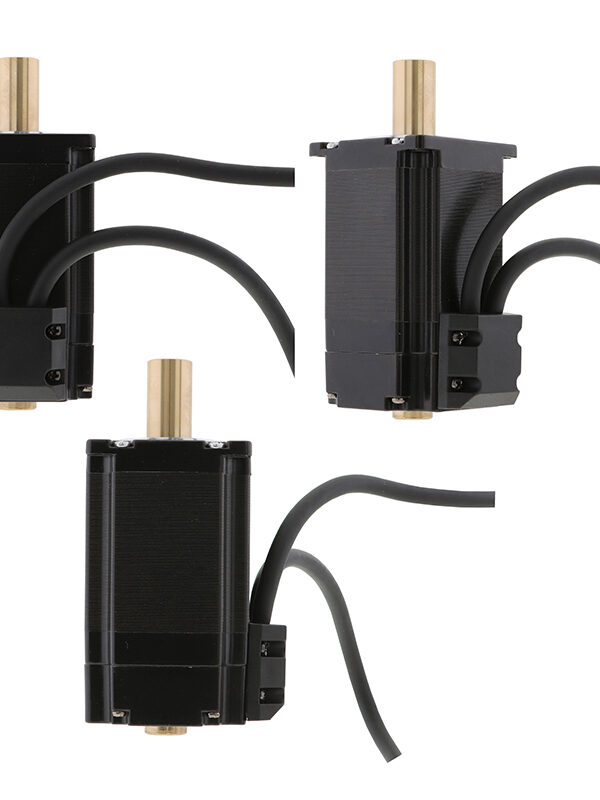

57mm Closed-Loop Dual-Shaft Hollow Stepper Motor with 1000-line Optical Encoder
-

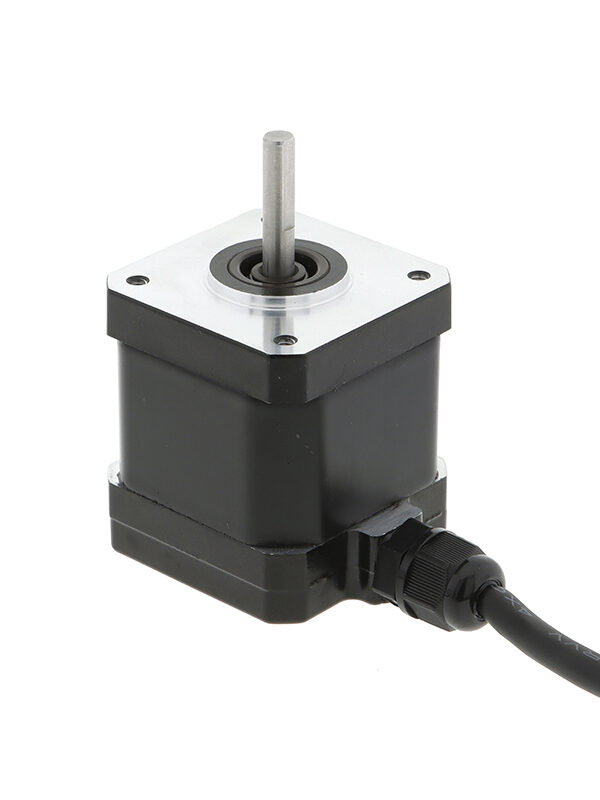

IP65 Waterproof Nema 17 Stepper Motor 2.0A 0.45Nm (63.74oz.in) – High Precision Small Stepper Motor
-

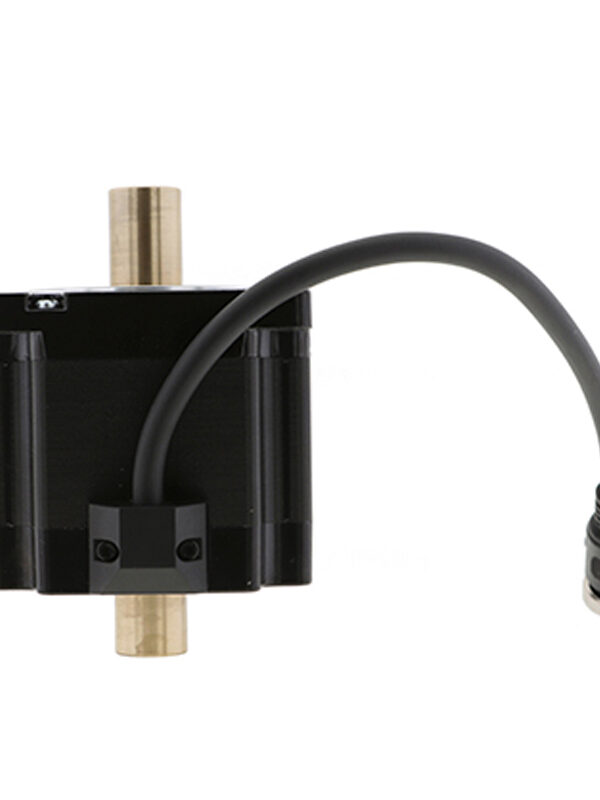

Dual Shaft 86mm Hollow Shaft Stepper Motor – NEMA34 4.5Nm 6A High Torque Stepper
