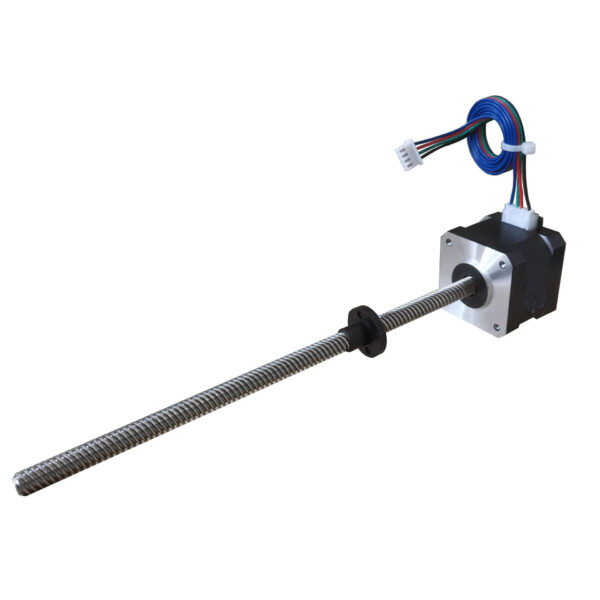

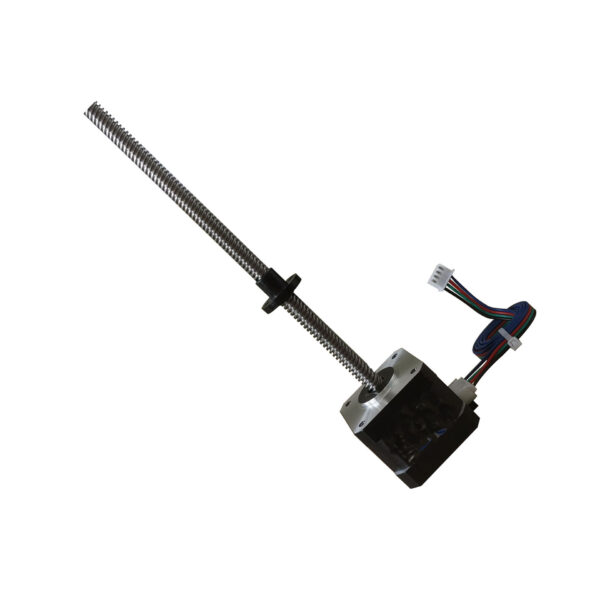

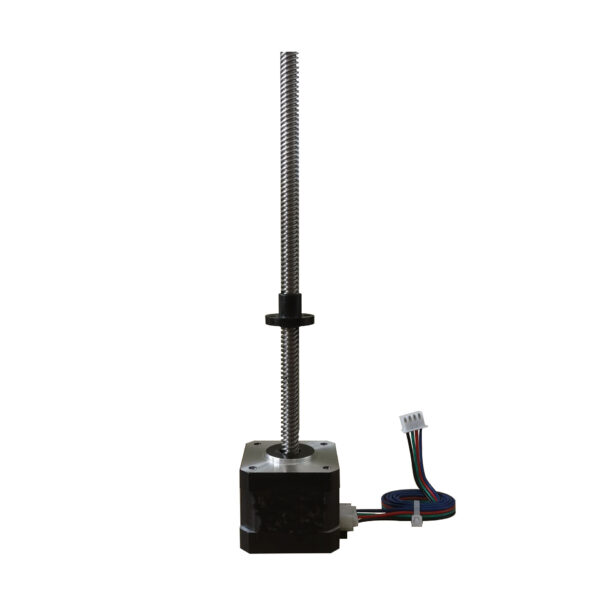

NEMA 17 External Lead Screw Stepper Motor – 34mm Stack, 0.4A, 8mm Lead, 200mm Screw
This NEMA 17 external lead screw stepper motor features a 34 mm stack length and an 8 mm lead screw with a standard 200 mm length. Designed for compact linear motion systems, it delivers stable thrust at low current (0.4 A) and supports custom screw lengths for precision linear actuator applications.
NEMA 17 External Lead Screw Stepper Motor Overview
This NEMA 17 external lead screw stepper motor integrates a precision stepper motor
with a factory-aligned external lead screw, forming a compact and reliable
stepper motor linear actuator. With a 34 mm motor stack and low operating current,
it is ideal for applications requiring smooth linear motion, accurate positioning,
and reduced system complexity.
Key Features
- External lead screw stepper motor design for direct linear output
- 34 mm stack NEMA 17 motor body for space-constrained installations
- 8 mm screw optimized for balanced speed and thrust
- Standard 200 mm screw length, customizable for different strokes
- Low current consumption suitable for compact linear power supplies
Electrical & Mechanical Specifications
| Parameter | Specification |
|---|---|
| Frame Size | NEMA 17 (42 × 42 mm) |
| Motor Stack Length | 34 mm |
| Step Angle | 1.8° ±5% |
| Number of Phases | 2 |
| Rated Current | 0.4 A |
| Phase Voltage | 12 VDC |
| Phase Resistance | 30 Ω ±10% |
| Phase Inductance | 37 mH ±20% |
| Holding Torque | 0.28 N·m |
| Insulation Class | Class B |
| Ambient Temperature | -20°C to +50°C |
| Motor Weight | Approx. 0.2 kg |
Specifications
| Item | Details |
|---|---|
| Screw Type | External Lead Screw |
| Lead | 8 mm |
| Standard Length | 200 mm |
| Customization | Custom screw length available |
| Nut Material | POM |
Subdivision (Microstepping) Settings
| Microstep | Linear Resolution (mm/step) |
|---|---|
| Full Step | 0.04 |
| 1/2 Step | 0.02 |
| 1/8 Step | 0.005 |
| 1/16 Step | 0.0025 |
Wiring Diagram
| Wire Color | Signal |
|---|---|
| Black | A+ |
| Green | A− |
| Red | B+ |
| Blue | B− |
Typical Applications
This external lead screw motor is widely used in compact
stepper motor linear actuator systems such as laboratory instruments,
small CNC fixtures, medical devices, pick-and-place modules, and automation equipment
powered by stable linear power supplies.
Download Datasheet
Download the full specification sheet for detailed parameters, wiring guide, and performance curves.
This stepper motor belongs to our
Stepper Motor series, designed for industrial automation applications.
Related Technical Articles
To better understand how lead screw systems work in linear motion applications,
the following technical articles provide in-depth guidance and design insights.
-
Lead Screw Stepping Motor Explained – Design, Advantages, and Applications
– A comprehensive overview of lead screw stepper motors and how they function as
stepper motor linear actuators.
-
How to Choose a Lead Screw for Stepper Motor Linear Actuators
– Learn how lead, pitch, and nut material affect speed, thrust, and positioning accuracy.
-
Stepper Motor Linear Actuator Design Guide
– Practical design considerations for building reliable linear drive motor systems.
