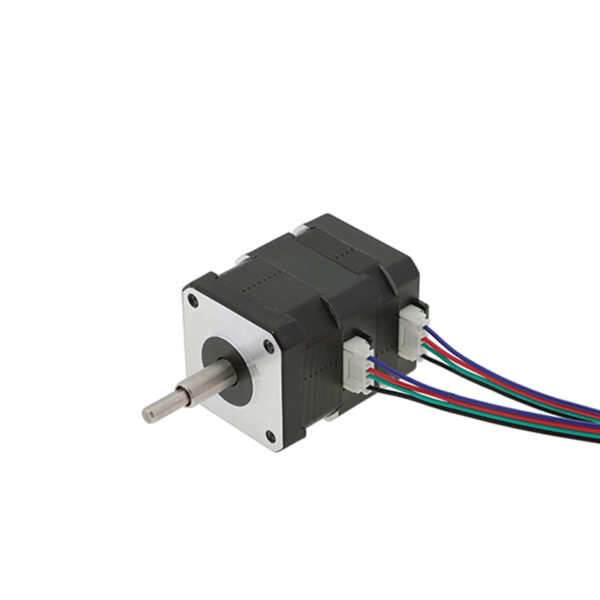

NEMA 17 Dual Shaft Stepper Motor Assembly for Precision Motion

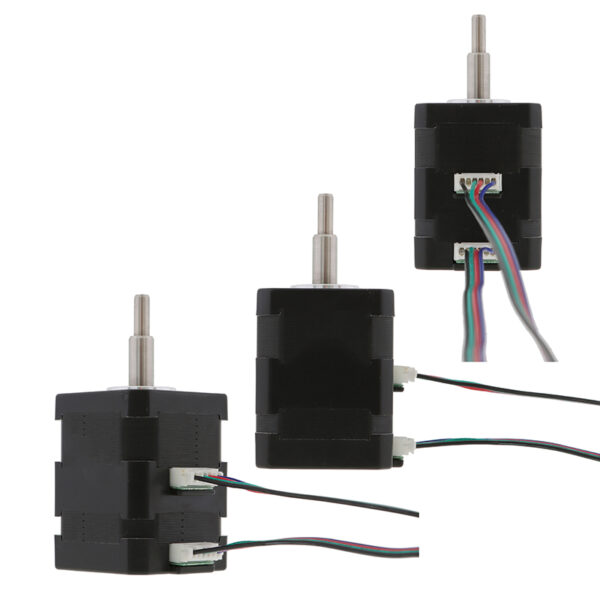

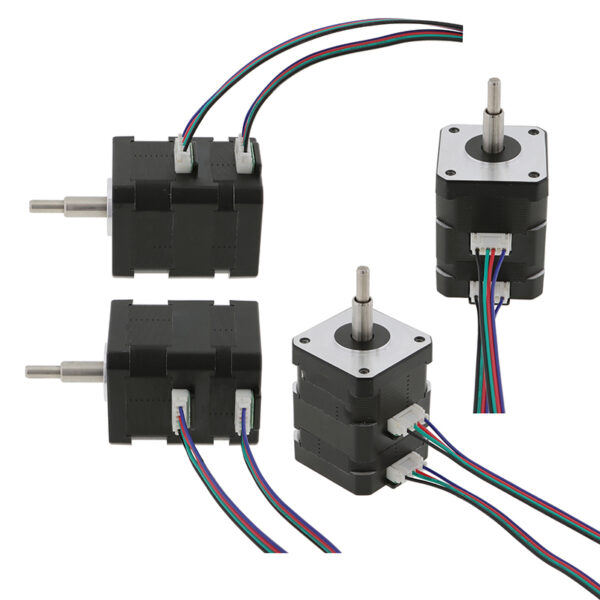

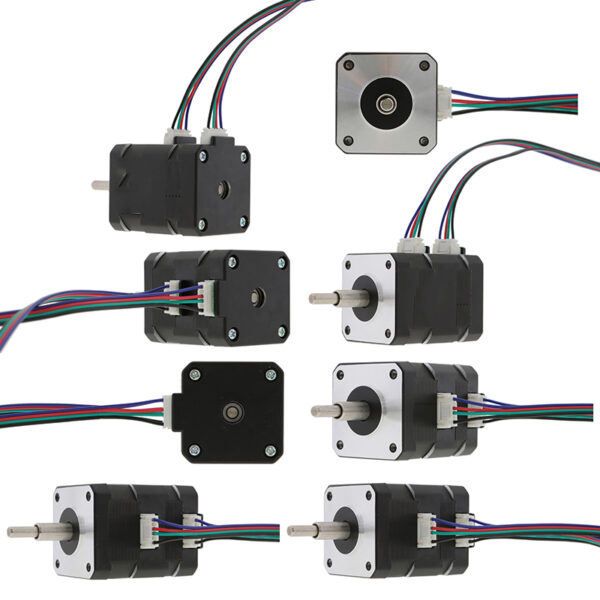

This NEMA 17 dual shaft stepper motor integrates two stators into one compact frame,
forming a Parallel Stepper Motor Assembly that delivers high torque, precision, and reliability.
Designed for advanced motion control systems, the Dual-Stator Stepper Motor provides
balanced performance with torque outputs of 0.25Nm (35.40 oz·in) and 0.17Nm (24.07 oz·in).

Features

• High-torque dual-shaft design with two synchronized NEMA 17 motors.
• Compact modular frame for easy integration into automation and robotics.
• Precision 1.8° step angle ensuring smooth and accurate motion.
• Compatible with various motor dual shaft and parallel stepper motors assemblies.
• Stable performance under 12–24V DC supply and low heating characteristics.

Applications

• 3D printers and automation systems
• Dual-axis CNC equipment
• Modular motion control devices
• SMT feeding mechanisms
• Custom dual-stator stepper motor assemblies

Specifications

Parameter	No.1 Motor	No.2 Motor
Step Angle	1.8° ±5%	1.8° ±5%
Number of Phase	2	2
Phase Voltage	6.3 VDC	7.5 VDC
Phase Current	1.5 A	1.5 A
Phase Resistance	4.25 Ω ±10% (at 20°C)	5.3 Ω ±10% (at 20°C)
Phase Inductance	9.0 mH ±20%	9.4 mH ±20%
Static Moment	0.25 Nm (35.40 oz·in)	0.17 Nm (24.07 oz·in)
Insulation Class	Class B	Class B
Insulation Resistance	100MΩ Min. (500V DC)	100MΩ Min. (500V DC)
Ambient Temperature	-20°C ~ +50°C	-20°C ~ +50°C
Ambient Humidity	15% ~ 95%	15% ~ 95%
Motor Weight	Approx. 0.48 kg	Approx. 0.49 kg
Use Voltage	DC 12~24V	DC 12~24V
Recommended Drive	2D4020A	2D4020A

Wiring Diagram

Wire Color	Connection
Black	A+
Green	A−
Red	B+
Blue	B−

The excitation sequence supports both CW and CCW operation for consistent performance in parallel drive systems.

Customization

The output shaft and dual-motor stack length can be customized for specific applications.
Contact us for custom wiring harness or stepper motor cables.
