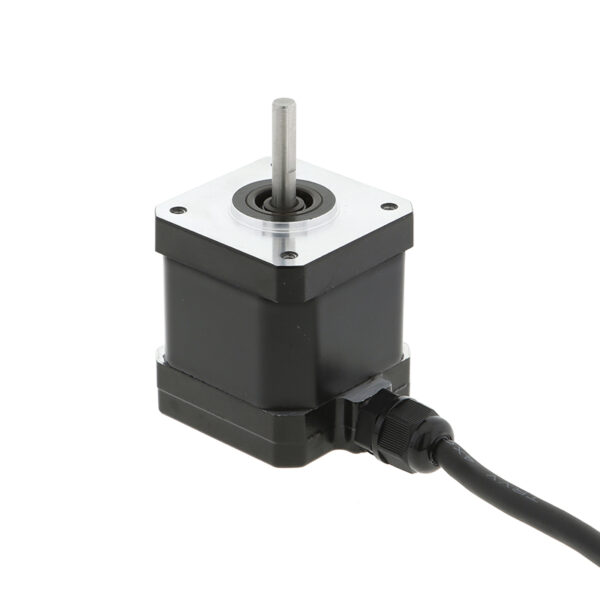

P Series IP67 Waterproof Nema 17 Stepper Motor 2.0A 0.45Nm(63.72oz.in) – Durable & High Torque Stepper

Short Description:
This IP67 waterproof Nema 17 stepper motor offers powerful 0.45Nm (63.72oz.in) holding torque and 2.0A phase current, designed for reliable performance in wet or dusty industrial environments. Ideal for CNC, automation, and outdoor motion control systems requiring high torque and waterproof protection.

Product Overview

The IP67 waterproof Nema 17 stepper motor has high torque with precise control. Featuring a sealed body to prevent water and dust ingress, it ensures stable operation in challenging conditions. With a 1.8° step angle and 2.0A current rating, this stepper motor is compatible with most industrial-grade stepper drivers and controllers.

Technical Specifications

Item	Specification
Step Angle	1.8° ±5%
Number of Phase	2
Phase Voltage	3.0 VDC
Phase Current	2.0 Amp
Phase Resistance	1.5Ω ±10% (At 20°C)
Phase Inductance	3.0 mH ±20%
Static Holding Torque	0.45 Nm (1203.97 oz.in)
Insulation Class	Class B
Insulation Resistance	100MΩ min. (500V DC)
Ambient Temperature	-20°C ~ +50°C
Ambient Humidity	≤90% RH (non-condensing)
Motor Weight	Approx. 0.40 Kg
Voltage Range	DC 12-36V
Recommended Driver	2D4020A or compatible 2A driver
Waterproof Rating	IP67 (Protected from dust and low-pressure water jets)
Use Environment	Cannot be used underwater; avoid steam or heavy condensation

Excitation Sequence and Direction (Clockwise)

Step	A+	B+	A-	B-
1	+	+	–	–
2	+	–	–	+
3	–	–	+	+
4	–	+	+	–

Note: CW rotation is viewed from the mounting surface side.

Features & Advantages

• High torque performance up to 0.45Nm with 2.0A phase current
• IP65 waterproof housing protects against dust and splashes
• Compatible with NEMA 17 mounting and shaft standards
• Suitable for CNC machines, robotics, conveyors, and outdoor equipment
• Custom output shaft sizes available upon request

Applications

Widely used in CNC routers, laser cutters, automated packaging lines, and robotic positioning systems that require reliable, high-torque motion control. The waterproof feature makes it especially suitable for humid or outdoor environments.

Why Choose Our Waterproof Stepper Motor?

This waterproof Nema 17 stepper motor combines durability and accuracy, offering stable performance for demanding industrial tasks. Whether you need a high-torque stepper motor for automation or a sealed stepper motor for outdoor machinery, this IP65-rated model provides the ideal balance between power and protection.

Download Datasheet

Download the full specification sheet for detailed parameters, wiring guide, and performance curves.
