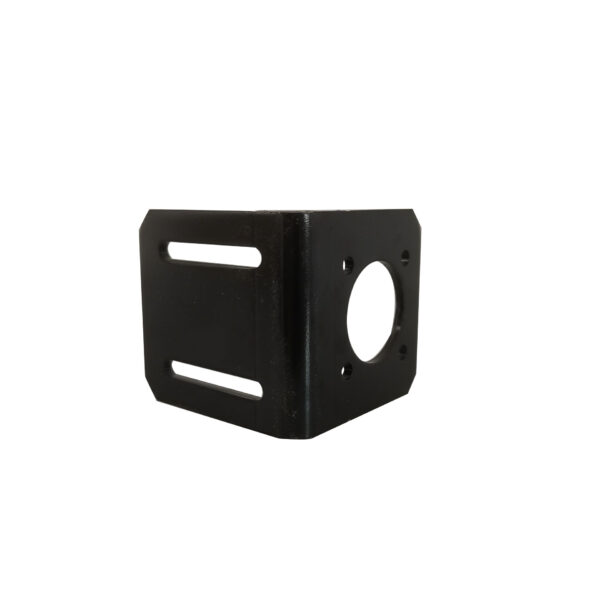

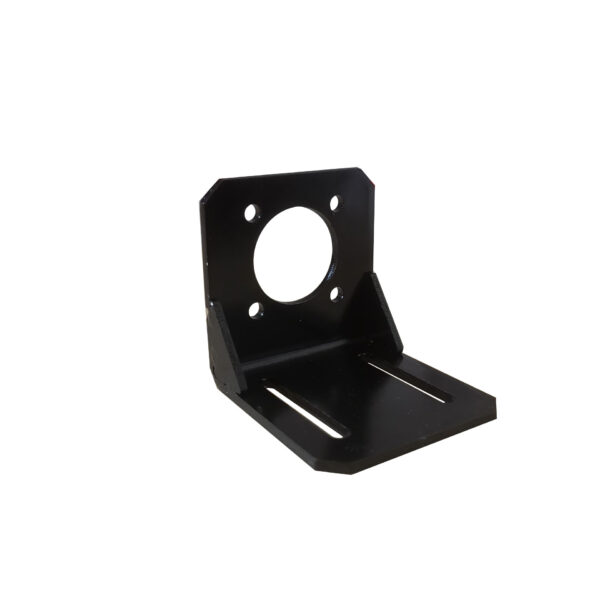

Durable NEMA 17 Motor Bracket – Precision Stepper Motor Holder

This high-quality motor bracket is specifically designed for NEMA 17 stepper motors and gear reduction applications.
Made of 3mm thick cold-rolled steel with reinforced 90° bends, it ensures reliable strength and stability in automation, robotics, and motion control assemblies.
The stepper motor holder supports precise positioning of the motor shaft and allows flexible installation of gear reducers, couplings, or linear actuators.

Features

• Designed for NEMA 17 stepper motors and gearbox support.
• Made from high-quality steel plate with black coating for corrosion resistance.

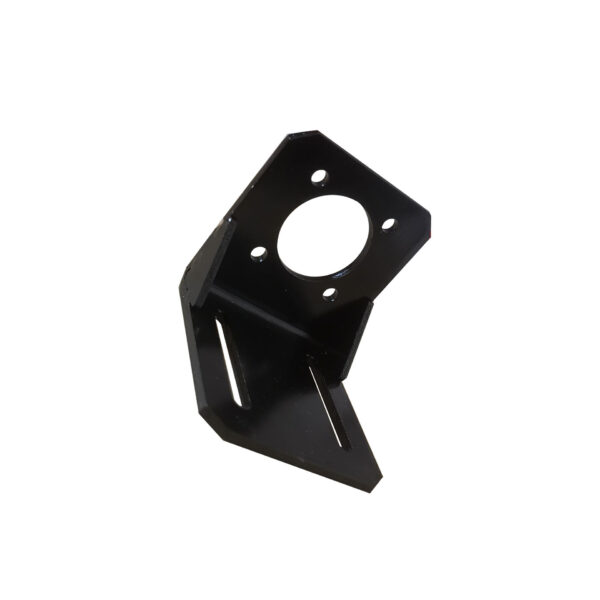

• Reinforced 90° bend for added strength and vibration stability.
• Accurate mounting hole spacing for easy alignment with motor shaft couplers.
• Suitable for stepper motor shaft holder and motor mounting bracket applications.

Technical Drawing Parameters

Applications

• Robotics and automation systems
• 3D printer motor mounting
• Linear actuator and gear reducer assemblies
• DIY CNC machines and motion control projects

Installation Example

This nema 17 stepper motor holder provides stable fixation for both the motor and attached gearbox.
It can also be used as a nema 8 stepper motor bracket for smaller assemblies with adaptable spacing.

Download Datasheet

Download the full specification sheet for detailed parameters, wiring guide, and performance curves.
