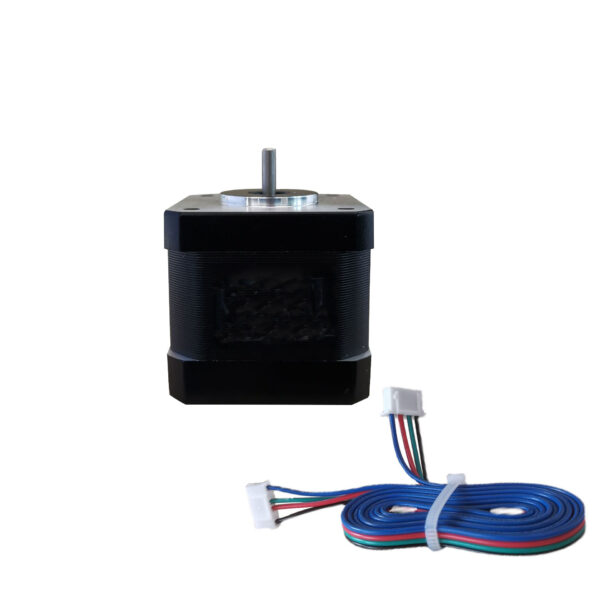

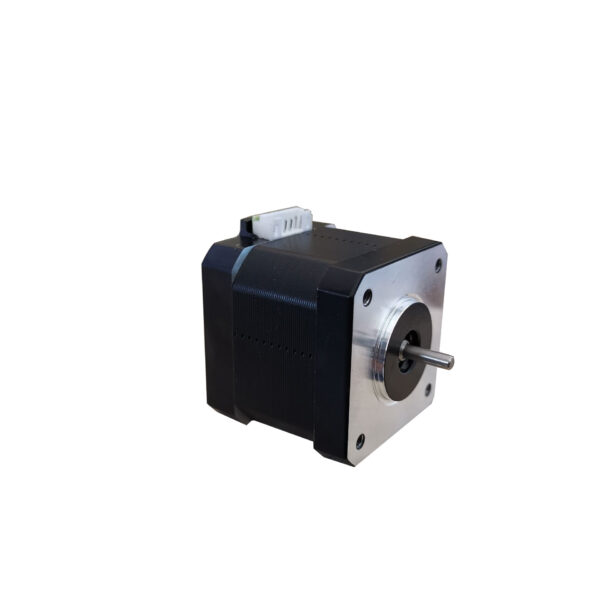

NEMA 17 stepper motor front view with clear wiring connections.

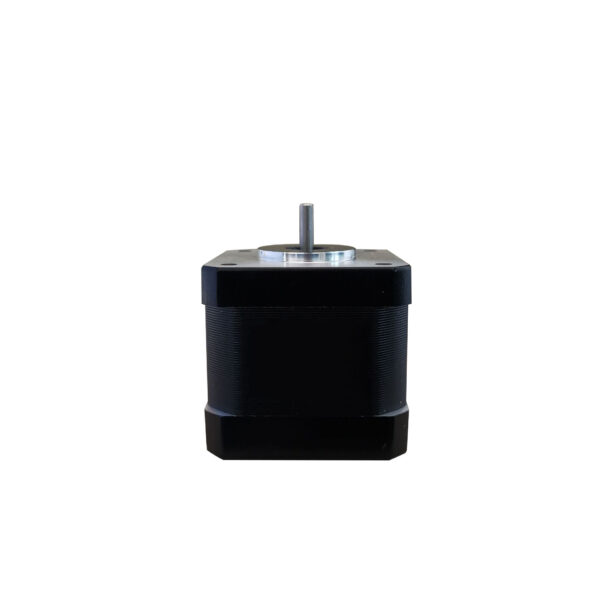

NEMA 17 stepper motor side view with detailed design.
Wiring diagram for NEMA 17 stepper motor with clear connections.

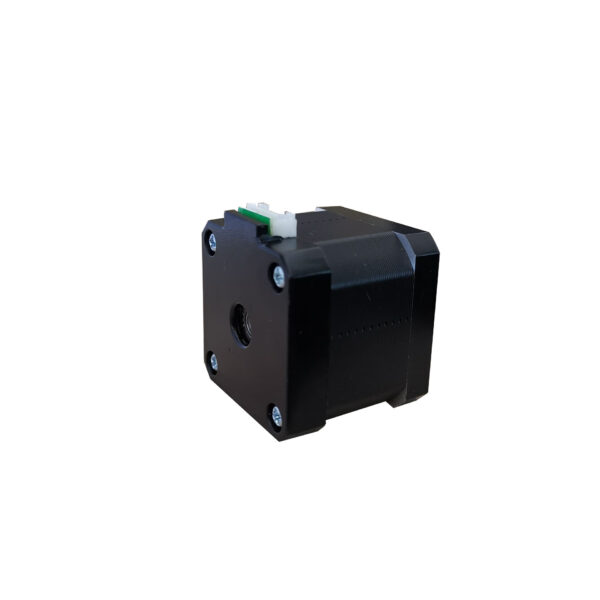

NEMA 17 stepper motor encoder wiring for precision control.
  1. NEMA 17 stepper motor with 0.45Nm torque, ideal for precision control in automation and robotics.
  2. NEMA 17 stepper motor front view with clear wiring connections.
  3. NEMA 17 stepper motor side view with detailed design.
  4. Wiring diagram for NEMA 17 stepper motor with clear connections.
  5. NEMA 17 stepper motor encoder wiring for precision control.

NEMA 17 Stepper Motor with 0.45Nm Torque, 2-Phase, 4-Wire

This NEMA 17 stepper motor delivers precision control with 0.45Nm torque, making it an ideal solution for applications requiring compact and reliable stepper motion. Suitable for a wide range of automation projects.

Categories: , , , Tags: , Brand:

NEMA 17 Stepper Motor Overview

This NEMA 17 stepper motor offers high performance with a torque of 0.45Nm (63.72oz.in), a step angle of 1.8° ±5%. It’s designed with 2-phase and 4-wire configuration, providing precise and reliable motion control for various automation systems. With a voltage of 3.27V and a current of 1.33A, this motor is ideal for projects requiring a compact, efficient solution.

Key Features:

  • Step Angle: 1.8° ±5%
  • Phase Voltage: 3.27V
  • Phase Current: 1.33A
  • Phase Resistance: 2.7Ω ±10% (At 20°C)
  • Static Moment: 0.45Nm

Applications:

This stepper motor is perfect for use in 3D printers, CNC machines, robotics, and other precise motion applications. Its compact design and high torque output make it a reliable choice for applications requiring accurate control with minimal space.

Specifications Table:

Parameter Value
Step Angle 1.8° ±5%
Phase Voltage 3.27 VDC
Phase Current 1.33 A
Phase Resistance 2.7 Ω ±10% (At 20°C)
Static Moment 0.32 Nm
Insulation Class Class B
Operating Temperature -20°C to +50°C
Weight 0.2 Kg
Recommended Drive 2402A

Encoder & Wiring Diagram:

The wiring diagram and encoder configuration are provided for easy setup and integration into your automation system.

Related Products:

For more details about planetary gearboxes, check out our engineering guide and stepper motor with gearbox solutions.

Download Datasheet

Download the full specification sheet for detailed parameters, wiring guide, and performance curves.
