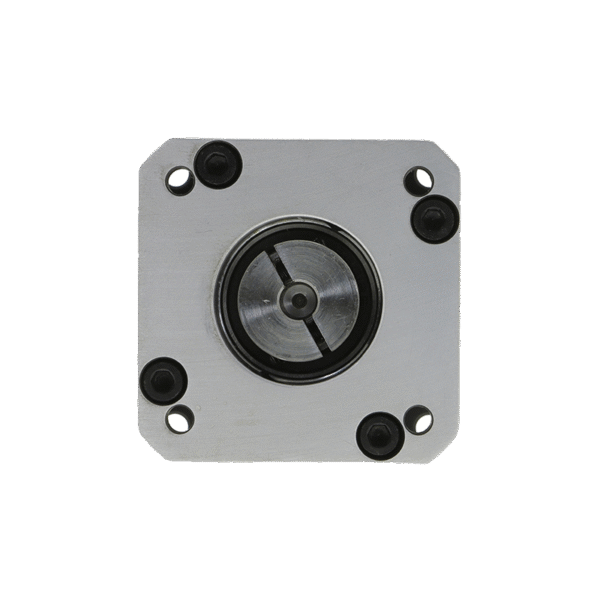

HPS42 Gearbox for 42mm Brushless Motors – Integrated Planetary Gearbox (Ratios 5:1 / 10:1 / 15:1 / 20:1 / 25:1 / 50:1 / 100:1)
Compact and high-precision HPS42 planetary gearbox designed for 42mm brushless motors.Available in gear ratios of 5:1, 10:1, 15:1, 20:1, 25:1, 50:1, and 100:1, this integrated brushless gearmotor delivers stable torque, smooth transmission, and long service life for automation and robotics applications.
HPS42 Gearbox for 42mm Brushless Motors – Integrated Planetary Gearbox (Ratios 5:1 / 10:1 / 15:1 / 20:1 / 25:1 / 50:1 / 100:1)
Compact and high-precision HPS42 planetary gearbox designed for 42mm brushless motors.
This brushless gearmotor combines smooth performance, long service life, and multiple gear ratios,
making it ideal for automation, robotics, CNC, and packaging applications.
Product Description
The HPS42 integrated brushless gearbox is designed for 42mm brushless DC motors.
With a durable planetary gear reducer design, it delivers high torque, smooth transmission, and compact dimensions.
This planetary gearbox motor supports a wide range of planetary gear ratios (5:1 to 100:1),
ensuring stable performance for precision equipment.
Main Features
- Integrated design with 42mm brushless motors
- Wide gear ratio options: 5, 10, 15, 20, 25, 50, 100
- High transmission efficiency up to 95%
- Low noise operation (<55 dB)
- Durable construction, lifespan >20,000 hours
- Compact size for small-space installations
Technical Parameters
| Item | Specification |
|---|---|
| Compatible Motor | 42mm Brushless DC Motor |
| Gear Ratio Options | 5:1 / 10:1 / 15:1 / 20:1 / 25:1 / 50:1 / 100:1 |
| Nominal Output Torque (Tn) | 6–20 Nm (depending on ratio) |
| Backlash | <15 arcmin (standard) |
| Efficiency | 93%–95% |
| Noise Level | <55 dB |
| Max Input Speed | 6000 rpm |
| Protection Level | IP54 |
| Average Life Span | ≥20,000 hours |
| Working Temperature | -20°C ~ +120°C |
| Radial Load Capacity | 650 N |
| Axial Load Capacity | 120 N |
| Weight | Approx. 0.35 kg |
Available Gear Ratio Models
| Model | Gear Ratio | Rated Torque (Nm) | Backlash (arcmin) | Noise (dB) | Efficiency | Length (mm) | Application |
|---|---|---|---|---|---|---|---|
| HPS42-5 | 5:1 | 8 | <15 | <55 | 95% | 52 | Robotics, Automation |
| HPS42-10 | 10:1 | 10 | <15 | <55 | 95% | 52 | CNC, Packaging |
| HPS42-15 | 15:1 | 12 | <15 | <55 | 94% | 58 | Industrial Automation |
| HPS42-20 | 20:1 | 14 | <15 | <55 | 94% | 58 | Robotics |
| HPS42-25 | 25:1 | 16 | <15 | <55 | 93% | 60 | Automation Drives |
| HPS42-50 | 50:1 | 18 | <15 | <55 | 93% | 65 | Printing, Packaging |
| HPS42-100 | 100:1 | 20 | <20 | <55 | 92% | 72 | Precision Equipment |
Applications
This HPS42 integrated brushless gearbox is suitable for:
- Robotics and automation systems
- CNC machinery and machine tools
- Packing and printing machines
- Industrial automation drives
- Precision motion control equipment
