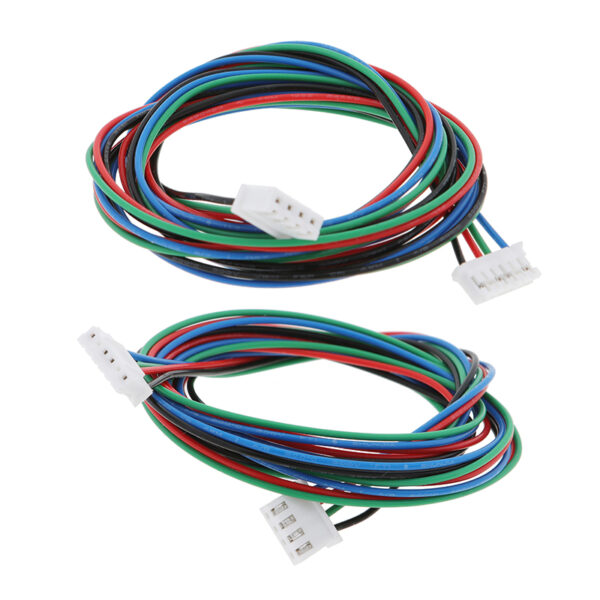

Custom Stepper Motor Wires Extension Cable for NEMA 17/23/34 – XH2.54 4-Pin & PH-6Y 6-Pin Connectors, Flexible Length Options
High-quality stepper motor wires with XH2.54 and PH-6Y connectors for 25mm, 35mm, and 42mm stepper motors. UL1007 AWG24 wire ensures stable performance and easy connection. Lead length customizable for your application.
Custom Stepper Motor Wires Extension Cable Overview

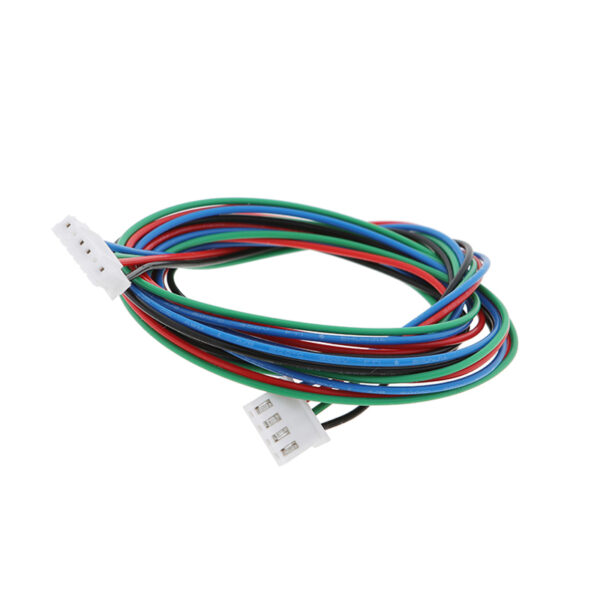

This stepper motor wires is designed for NEMA 17, 23, and 34 stepper motors, featuring

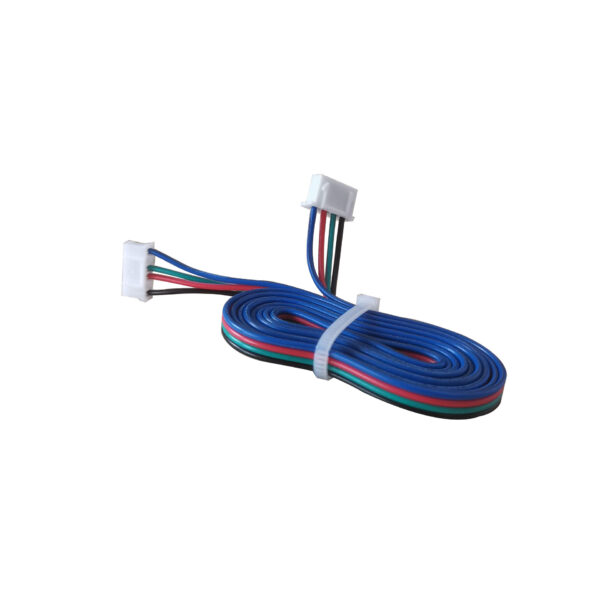

XH2.54 4-pin and PH-6Y 6-pin connectors. It provides a secure and reliable
connection between the stepper motor and driver, ensuring stable signal transmission and smooth operation.
The UL1007 AWG24 tinned copper wire construction enhances durability and electrical conductivity.
Key Features
- Compatible with 25mm, 35mm, and 42mm (NEMA 17/23/34) stepper motors
- UL1007 AWG24 wire for high electrical reliability
- Wire colors: Black, Green, Red, Blue – clear stepper motor wiring identification
- Standard length: 1000 ±20 mm (custom lengths available)
- Connector types: PH-6Y 2.0mm 6-Pin / XH2.54mm 4-Pin
- Ideal for 3D printers, CNC machines, robotics, and motion systems
Technical Specifications
| Item | Specification |
|---|---|
| Main Cable Type | UL1007 AWG24 Tinned Copper |
| Connector A | PH-6Y (2.0mm) 6-Pin |
| Connector B | XH2.54mm 4-Pin |
| Wire Colors | Black, Green, Red, Blue |
| Standard Length | 1000 ±20 mm (customizable) |
| Application | Stepper Motor Wiring / NEMA Cable / Motor Cable |

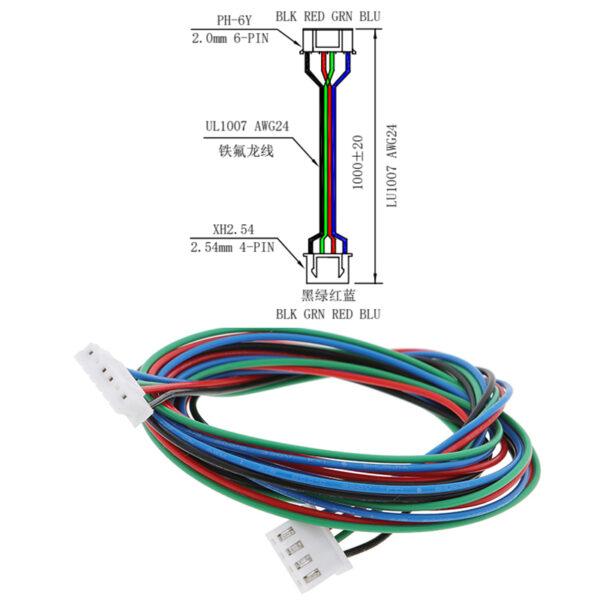

Stepper Motor Wiring Diagram
| Wire Color | Function | Connector Pin |
|---|---|---|
| Black | Phase A+ | 1 |
| Green | Phase A− | 2 |
| Red | Phase B+ | 3 |
| Blue | Phase B− | 4 |
Applications
Perfect for connecting stepper motors in 3D printers, automation equipment, CNC routers, and robotic arms.
The stepper motor wiring diagram helps ensure correct installation and performance.

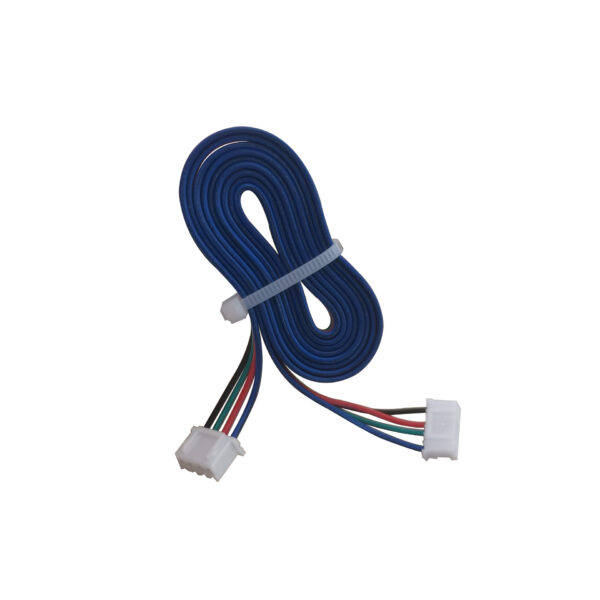

Custom stepper motor cables with 6-Pin PHR-6 connectors and tailored lead lengths are also available.
